Marzolf Interlocking Split Flanges

Product Catalog

Marzolf Flanges

629 parts in stock sizes from 1/2 in to 30 in across 54 lines.

629 parts

Carbon Steel to fit Pipe Angle Rings: Class 150 Drilling

Steel Pipe · Angle Ring · Class 150 · 20 parts

ASME Class 150 drilling

Stainless Steel to fit Pipe Angle Rings: Class 150 Drilling

Steel Pipe · Angle Ring · Class 150 · 20 parts

Class 150 Drilling

  • 3612-PAFR
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-PAFR
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-PAFR
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-3/4-PAFR
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-3/4-PAFR
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-3/4-PAFR
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-4/4-PAFR
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-4/4-PAFR
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-4/4-PAFR
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-4/4-PAFR
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-4/4-PAFR
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-9/8-PAFR
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-12/8-PAFR
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-12/8-PAFR
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-12/8-PAFR
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-12/8-PAFR
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-12/8-PAFR
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-15/8-PAFR
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-15/8-PAFR
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-18/8-PAFR
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 150 Carbon Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Class 150 · 20 parts

This line of MARZOLF™ class 150 carbon steel stub end two piece flanges is designed to fit IPS Pipe Stub Ends and OD Tube Angle Rings. MARZOLF™ class 150 carbon steel stub end split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip-On Angle Face Rings. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy.

Class 150 Stainless Steel Flanges Pipe Stub Ends

Steel Pipe · Stub End · Class 150 · 20 parts

This line of MARZOLF™ class 150 stainless steel stub end two piece flanges is designed to fit IPS Pipe Stub Ends and OD Tube Angle Rings. MARZOLF™ class 150 stainless steel stub end split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip-On Angle Face Rings. These rings are also available in T-304L Stainless Steel.

  • 3612-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-3/4-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-3/4-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-3/4-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-4/4-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-4/4-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-4/4-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-4/4-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-4/4-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-9/8-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-12/8-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-12/8-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-12/8-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-12/8-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-12/8-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-15/8-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-15/8-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-18/8-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 300 Carbon Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Class 300 · 20 parts

This line of MARZOLF™ class 300 carbon steel stub end two piece flanges is designed to mate up with class 300 bolt hole pattern. MARZOLF™ class 300 carbon steel stub end split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Van Stone style flanges. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy.

Class 300 Stainless Steel Split Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Class 300 · 20 parts

This line of MARZOLF™ class 300 interlocking pipe stub end split flanges is designed to mate up with class 300 bolt hole pattern. MARZOLF™ class 300 pipe stub end lap joint flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Van Stone style flanges. These rings are available in different alloys including T-304L stainless steel.

  • 3612-300-IPS
    Size
    1/2 in
    O.D.
    3-3/4"
    Bolt Circle
    2-5/8"
    Holes
    4
  • 3602-300-IPS
    Size
    3/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/4"
    Holes
    4
  • 3572-300-IPS
    Size
    1 in
    O.D.
    4-7/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3582-300-IPS
    Size
    1-1/4 in
    O.D.
    5-1/4"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 3592-300-IPS
    Size
    1-1/2 in
    O.D.
    6-1/8"
    Bolt Circle
    4-1/2"
    Holes
    4
  • 2682-300-IPS
    Size
    2 in
    O.D.
    6-1/2"
    Bolt Circle
    5"
    Holes
    8
  • 1822-300-IPS
    Size
    2-1/2 in
    O.D.
    7-1/2"
    Bolt Circle
    5-7/8"
    Holes
    8
  • 1722-300-IPS
    Size
    3 in
    O.D.
    8-1/4"
    Bolt Circle
    6-5/8"
    Holes
    8
  • 1492-300-IPS
    Size
    4 in
    O.D.
    10"
    Bolt Circle
    7-7/8"
    Holes
    8
  • 2922-300-IPS
    Size
    5 in
    O.D.
    11"
    Bolt Circle
    9-1/4"
    Holes
    8
  • 1262-300-IPS
    Size
    6 in
    O.D.
    12-1/2"
    Bolt Circle
    10-5/8"
    Holes
    12
  • 1442-300-IPS
    Size
    8 in
    O.D.
    15"
    Bolt Circle
    13"
    Holes
    12
  • 1502-300-IPS
    Size
    10 in
    O.D.
    17-1/2"
    Bolt Circle
    15-1/4"
    Holes
    16
  • 1522-300-IPS
    Size
    12 in
    O.D.
    20-1/2"
    Bolt Circle
    17-3/4"
    Holes
    16
  • 1842-300-IPS
    Size
    14 in
    O.D.
    23"
    Bolt Circle
    20-1/4"
    Holes
    20
  • 1752-300-IPS
    Size
    16 in
    O.D.
    25-1/2"
    Bolt Circle
    22-1/2"
    Holes
    20
  • 1762-300-IPS
    Size
    18 in
    O.D.
    28"
    Bolt Circle
    24-3/4"
    Holes
    24
  • 1772-300-IPS
    Size
    20 in
    O.D.
    30-1/2"
    Bolt Circle
    27"
    Holes
    24
  • 3252-300-IPS
    Size
    24 in
    O.D.
    36"
    Bolt Circle
    32"
    Holes
    24
  • 3262-300-IPS
    Size
    30 in
    O.D.
    43"
    Bolt Circle
    39-1/4"
    Holes
    28

Class 75 Carbon Steel Flanges for Pipe Angle Rings

Steel Pipe · Angle Ring · Class 75 · 20 parts

This line of MARZOLF™ class 75 carbon steel angle ring two-piece flanges is designed to fit IPS Pipe Angle Rings. MARZOLF™ class 75 carbon steel angle ring split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip-On Angle Face Rings. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy.

  • 361G80-PAFR
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 360G80-PAFR
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 357G80-PAFR
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 358G80-PAFR
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 359G80-PAFR
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268G80-PAFR
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182G80-PAFR
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172G80-PAFR
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149G80-PAFR
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 292G80-PAFR
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 126G80-PAFR
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144G80-PAFR
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150G80-PAFR
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152G80-PAFR
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184G80-PAFR
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 175G80-PAFR
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 176G80-PAFR
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 177G80-PAFR
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 325G80-PAFR
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 326G80-PAFR
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Stainless Steel Flanges for Pipe Angle Rings

Steel Pipe · Angle Ring · Class 75 · 20 parts

This line of MARZOLF™ class 75 stainless steel angle ring two piece flanges is designed to fit IPS Pipe Angle Rings. MARZOLF™ class 75 stainless steel angle ring split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip On Angle Face Rings. These rings are also available in T-304L Stainless Steel.

  • 3612-PAFR
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-PAFR
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-PAFR
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-PAFR
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-PAFR
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-PAFR
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-PAFR
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-PAFR
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-PAFR
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-PAFR
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-PAFR
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-PAFR
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-PAFR
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-PAFR
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-PAFR
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-PAFR
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-PAFR
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-PAFR
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-PAFR
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-PAFR
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Carbon Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Class 75 · 20 parts

This line of MARZOLF™ class 75 carbon steel pipe stub end two piece flanges is designed to fit IPS Pipe Stub Ends and OD Tube Angle Rings. MARZOLF™ class 75 carbon steel pipe stub end split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip-On Angle Face Rings. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy.

  • 361G80-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 360G80-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 357G80-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 358G80-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 359G80-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268G80-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182G80-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172G80-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149G80-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 292G80-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 126G80-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144G80-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150G80-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152G80-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184G80-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 175G80-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 176G80-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 177G80-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 325G80-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 326G80-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Stainless Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Class 75 · 20 parts

This line of MARZOLF™class 75 stainless steel angle ring two piece flanges is designed to fit IPS Pipe Stub Ends and OD Tube Angle Rings. MARZOLF™class 75 stainless steel angle ring split flanges save money and reduce downtime by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Slip-On Angle Face Rings. These rings are also available in T-304L Stainless Steel.

  • 3612-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Pressure-Rated Carbon Steel Flanges for Pipe Angle Rings

Steel Pipe · Angle Ring · Pressure Rated · 20 parts

Pressure-Rated Stainless Steel Flanges for Pipe Angle Rings

Steel Pipe · Angle Ring · Pressure Rated · 20 parts

Pressure-Rated Carbon Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Pressure Rated · 20 parts

Pressure-Rated Stainless Steel Flanges for Pipe Stub Ends

Steel Pipe · Stub End · Pressure Rated · 20 parts

  • 3612-4/4-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-4/4-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-4/4-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-4/4-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-4/4-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-5/4-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-5/4-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-5/4-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-12/8-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-15/8-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-15/8-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-15/8-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-21/8-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-21/8-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-24/8-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-27/8-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-27/8-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-30/8-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-33/8-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-36/8-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

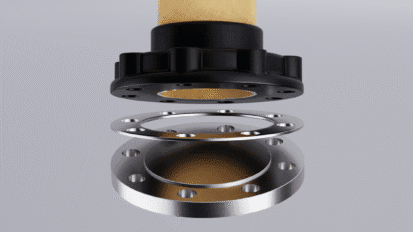

Carbon Steel Backing Rings for Fiberglass Pipe

FRP · Reinforcement Backing Ring · Class 150 · 11 parts

This carbon steel backing ring sits behind molded fiberglass flanges to effectively disperse bolt torque and eliminate cracked flanges.

  • 357-SFP
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 359-SFP
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268-SFP
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182-SFP
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172-SFP
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149-SFP
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 126-SFP
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144-SFP
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150-SFP
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152-SFP
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184-SFP
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12

Stainless Steel Backing Rings for Fiberglass Pipe

FRP · Reinforcement Backing Ring · Class 150 · 11 parts

This stainless steel backing ring sits behind molded fiberglass flanges to effectively disperse bolt torque and eliminate cracked flanges.

  • 3572-SFP
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3592-SFP
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-SFP
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-SFP
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-SFP
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-SFP
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 1262-SFP
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-SFP
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-SFP
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-SFP
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-SFP
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12

Fiberglass Carbon Steel Standalone & Replacement Backing Ring

FRP · Standalone / Replacement Ring · Class 150 · 20 parts

Fiberglass Stainless Steel Standalone & Replacement Backing Ring

FRP · Standalone / Replacement Ring · Class 150 · 20 parts

PVC & CPVC Carbon Steel Backing Ring Flanges

PVC/CPVC · Reinforcement Backing Ring · Class 150 · 9 parts

This line of MARZOLF™ Two Piece carbon steel backing rings are designed to reinforce PVC and CPVC Van Stone flanges. These split flanges disperse bolt torque to facilitate higher bolt torques and ultimately increase the pressure capability of the plastic flanges.

PVC & CPVC Stainless Steel Backing Ring Flanges

PVC/CPVC · Reinforcement Backing Ring · Class 150 · 9 parts

This line of MARZOLF™ Two Piece stainless steel backing rings are designed to reinforce PVC and CPVC Van Stone flanges. These split flanges disperse bolt torque to facilitate higher bolt torques and ultimately increase the pressure capability of the plastic flanges.

PVC & CPVC Carbon Steel Two Piece Flange Replacement

PVC/CPVC · Replacement Ring (Van Stone) · Class 150 · 20 parts

This line of MARZOLF™ carbon steel PVC two piece flange replacement and carbon steel CPVC two piece flange replacement is designed to replace cracked or broken PVC and CPVC Van Stone flanges. Just like with steel piping, MARZOLF™ Two-Piece Replacement Flanges save money and reduce downtime by eliminating the need to cut and re-glue plastic piping when installing or replacing PVC or CPVC lap joint flanges. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy. These rings can also be made of PVC, CPVC, T-304L stainless steel, and T-316L stainless steel. Please contact a Marzolf Representative to determine the correct inside diameter for your application.

  • 361G80-TBD
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 360G80-TBD
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 357G80-TBD
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 358G80-TBD
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 359G80-TBD
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268G80-TBD
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182G80-TBD
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172G80-TBD
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149G80-TBD
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 292G80-TBD
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 126G80-TBD
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144G80-TBD
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150G80-TBD
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152G80-TBD
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184G80-TBD
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 175G80-TBD
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 176G80-TBD
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 177G80-TBD
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 325G80-TBD
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 326G80-TBD
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

PVC & CPVC Stainless Steel Two Piece Flange Replacement

PVC/CPVC · Replacement Ring (Van Stone) · Class 150 · 20 parts

This line of MARZOLF™ stainless steel PVC two piece flange replacement and stainless steel CPVC two piece flange replacement are designed to replace cracked or broken PVC and CPVC Van Stone flanges. Just like with steel piping, MARZOLF™ Two-Piece Replacement Flanges save money and reduce downtime by eliminating the need to cut and re-glue plastic piping when installing or replacing PVC or CPVC lap joint flanges. These rings can also be made of T-304L stainless steel, coated carbon steel, PVC and CPVC. Please contact a Marzolf representative to determine the correct inside diameter for your application.

  • 3612-TBD
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-TBD
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-TBD
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-TBD
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-TBD
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-TBD
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-TBD
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-TBD
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-TBD
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-TBD
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-TBD
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-TBD
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-TBD
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-TBD
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-TBD
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-TBD
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-TBD
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-TBD
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-TBD
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-TBD
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

1/4 Inch (in) Thickness Carbon Steel Solid Backing Ring Flanges to Fit Polyvinyl Chloride (PVC)/Chlorinated Polyvinyl Chloride (CPVC) Pipe

PVC/CPVC · Solid Backing Ring 1/4 in · Class 150 · 9 parts

1/4 Inch (in) Thickness T-316L Stainless Steel Solid Backing Ring Flanges to Fit Polyvinyl Chloride (PVC)/Chlorinated Polyvinyl Chloride (CPVC) Pipe

PVC/CPVC · Solid Backing Ring 1/4 in · Class 150 · 9 parts

Class 150 Carbon Steel HDPE DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 150 · 12 parts

Class 150 Stainless Steel HDPE DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 150 · 12 parts

Class 150 Carbon Steel Split Flanges for Polyethylene Pipe Stub Ends & Adapters

HDPE · IPS Stub End / Adapter · Class 150 · 20 parts

This line of MARZOLF™ Two-Piece Flanges is designed to fit Polyethylene Pipe Stub Ends and Flange Adapters. MARZOLF™ Flanges save money and reduce down time by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Flange Adapters. These rings are available with different corrosion resistant coatings including Zinc Electro Plate and E-Coat Epoxy.

Class 150 Stainless Steel Split Flanges for Polyethylene Pipe Stub Ends & Adapters

HDPE · IPS Stub End / Adapter · Class 150 · 20 parts

This line of MARZOLF™ Two-Piece Flanges is designed to fit Polyethylene Pipe Stub Ends and Flange Adapters. MARZOLF™ Flanges save money and reduce down time by eliminating the need to cut and reweld piping when installing or replacing Lap Joint flanges behind Stub Ends and Flange Adapters. These rings are also available in T-304L Stainless Steel.

  • 3612-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-3/4-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-3/4-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-3/4-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-4/4-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-4/4-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-4/4-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-4/4-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-4/4-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-9/8-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-12/8-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-12/8-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-12/8-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-12/8-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-12/8-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-15/8-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-15/8-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-18/8-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 300 Carbon Steel HDPE DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 300 · 12 parts

Class 300 Stainless Steel HDPE DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 300 · 12 parts

  • 1722-300-DIPS
    Size
    3 in
    O.D.
    8-1/4"
    Bolt Circle
    6-5/8"
    Holes
    8
  • 1492-300-DIPS
    Size
    4 in
    O.D.
    10"
    Bolt Circle
    7-7/8"
    Holes
    8
  • 1262-300-DIPS
    Size
    6 in
    O.D.
    12-1/2"
    Bolt Circle
    10-5/8"
    Holes
    12
  • 1442-300-DIPS
    Size
    8 in
    O.D.
    15"
    Bolt Circle
    13"
    Holes
    12
  • 1502-300-DIPS
    Size
    10 in
    O.D.
    17-1/2"
    Bolt Circle
    15-1/4"
    Holes
    16
  • 1522-300-DIPS
    Size
    12 in
    O.D.
    20-1/2"
    Bolt Circle
    17-3/4"
    Holes
    16
  • 1842-300-DIPS
    Size
    14 in
    O.D.
    23"
    Bolt Circle
    20-1/4"
    Holes
    20
  • 1752-300-DIPS
    Size
    16 in
    O.D.
    25-1/2"
    Bolt Circle
    22-1/2"
    Holes
    20
  • 1762-300-DIPS
    Size
    18 in
    O.D.
    28"
    Bolt Circle
    24-3/4"
    Holes
    24
  • 1772-300-DIPS
    Size
    20 in
    O.D.
    30-1/2"
    Bolt Circle
    27"
    Holes
    24
  • 3252-300-DIPS
    Size
    24 in
    O.D.
    36"
    Bolt Circle
    32"
    Holes
    24
  • 3262-300-DIPS
    Size
    30 in
    O.D.
    43"
    Bolt Circle
    39-1/4"
    Holes
    28

Class 300 Carbon Steel to Fit HDPE IPS Pipe Stub Ends

HDPE · IPS Stub End / Adapter · Class 300 · 20 parts

Class 300 Stainless Steel to Fit HDPE IPS Pipe Stub Ends

HDPE · IPS Stub End / Adapter · Class 300 · 20 parts

  • 3612-300-IPS
    Size
    1/2 in
    O.D.
    3-3/4"
    Bolt Circle
    2-5/8"
    Holes
    4
  • 3602-300-IPS
    Size
    3/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/4"
    Holes
    4
  • 3572-300-IPS
    Size
    1 in
    O.D.
    4-7/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3582-300-IPS
    Size
    1-1/4 in
    O.D.
    5-1/4"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 3592-300-IPS
    Size
    1-1/2 in
    O.D.
    6-1/8"
    Bolt Circle
    4-1/2"
    Holes
    4
  • 2682-300-IPS
    Size
    2 in
    O.D.
    6-1/2"
    Bolt Circle
    5"
    Holes
    8
  • 1822-300-IPS
    Size
    2-1/2 in
    O.D.
    7-1/2"
    Bolt Circle
    5-7/8"
    Holes
    8
  • 1722-300-IPS
    Size
    3 in
    O.D.
    8-1/4"
    Bolt Circle
    6-5/8"
    Holes
    8
  • 1492-300-IPS
    Size
    4 in
    O.D.
    10"
    Bolt Circle
    7-7/8"
    Holes
    8
  • 2922-300-IPS
    Size
    5 in
    O.D.
    11"
    Bolt Circle
    9-1/4"
    Holes
    8
  • 1262-300-IPS
    Size
    6 in
    O.D.
    12-1/2"
    Bolt Circle
    10-5/8"
    Holes
    12
  • 1442-300-IPS
    Size
    8 in
    O.D.
    15"
    Bolt Circle
    13"
    Holes
    12
  • 1502-300-IPS
    Size
    10 in
    O.D.
    17-1/2"
    Bolt Circle
    15-1/4"
    Holes
    16
  • 1522-300-IPS
    Size
    12 in
    O.D.
    20-1/2"
    Bolt Circle
    17-3/4"
    Holes
    16
  • 1842-300-IPS
    Size
    14 in
    O.D.
    23"
    Bolt Circle
    20-1/4"
    Holes
    20
  • 1752-300-IPS
    Size
    16 in
    O.D.
    25-1/2"
    Bolt Circle
    22-1/2"
    Holes
    20
  • 1762-300-IPS
    Size
    18 in
    O.D.
    28"
    Bolt Circle
    24-3/4"
    Holes
    24
  • 1772-300-IPS
    Size
    20 in
    O.D.
    30-1/2"
    Bolt Circle
    27"
    Holes
    24
  • 3252-300-IPS
    Size
    24 in
    O.D.
    36"
    Bolt Circle
    32"
    Holes
    24
  • 3262-300-IPS
    Size
    30 in
    O.D.
    43"
    Bolt Circle
    39-1/4"
    Holes
    28

Pressure-Rated Carbon Steel Split Flanges for Polyethylene Pipes with Ductile Iron Pipe Stub Ends

HDPE · DIPS Stub End / Adapter · Pressure Rated · 12 parts

Pressure-Rated Stainless Steel Split Flanges for Polyethylene Pipes with Ductile Iron Pipe Stub Ends

HDPE · DIPS Stub End / Adapter · Pressure Rated · 12 parts

Pressure-Rated Carbon Steel Split Flanges for Polyethylene Pipe Stub Ends

HDPE · IPS Stub End / Adapter · Pressure Rated · 20 parts

Pressure-Rated Stainless Steel Split Flanges for Polyethylene Pipe Stub Ends

HDPE · IPS Stub End / Adapter · Pressure Rated · 20 parts

  • 3612-4/4-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-4/4-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-4/4-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-4/4-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-4/4-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-5/4-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-5/4-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-5/4-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-12/8-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-15/8-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-15/8-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-15/8-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-21/8-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-21/8-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-24/8-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-27/8-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-27/8-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-30/8-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-33/8-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-36/8-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Fiberglass Carbon Steel Spacer Plate & Compensation Ring

FRP · Spacer / Compensation Ring · Class 150 · 20 parts

Fiberglass Stainless Steel Spacer Plate & Compensation Ring

FRP · Spacer / Compensation Ring · Class 150 · 20 parts

Polypropylene Carbon Steel Backing Ring Flanges

Polypropylene · Reinforcement Backing Ring · Class 150 · 9 parts

This line of MARZOLF™ Two Piece carbon steel backing rings are designed to reinforce polypropylene Van Stone flanges. These split flanges disperse bolt torque to facilitate higher bolt torques and ultimately increase the pressure capability of the plastic flanges.

Polypropylene Stainless Steel Backing Ring Flanges

Polypropylene · Reinforcement Backing Ring · Class 150 · 9 parts

This line of MARZOLF™ Two Piece stainless steel backing rings are designed to reinforce polypropylene Van Stone flanges. These split flanges disperse bolt torque to facilitate higher bolt torques and ultimately increase the pressure capability of the plastic flanges.

Polypropylene Carbon Steel Two Piece Flange Replacement

Polypropylene · Replacement Ring (Van Stone) · Class 150 · 20 parts

This line of MARZOLF™ carbon steel polypropylene two piece flange replacement is designed to replace cracked or broken polypropylene Van Stone flanges. Just like with steel piping, MARZOLF™ Two-Piece Replacement Flanges save money and reduce downtime by eliminating the need to cut and rejoin plastic piping when installing or replacing polypropylene lap joint flanges. These rings are available with different corrosion-resistant coatings including Zinc Electro Plate and E-Coat Epoxy. These rings can also be made of PVC, CPVC, T-304L stainless steel, and T-316L stainless steel. Please contact a Marzolf representative to determine the correct inside diameter for your application.

Polypropylene Stainless Steel Two Piece Flange Replacement

Polypropylene · Replacement Ring (Van Stone) · Class 150 · 20 parts

This line of MARZOLF™ stainless steel polypropylene two piece flange replacement is designed to replace cracked or broken polypropylene Van Stone flanges. Just like with steel piping, MARZOLF™ Two-Piece Replacement Flanges save money and reduce downtime by eliminating the need to cut and rejoin plastic piping when installing or replacing polypropylene lap joint flanges. These rings can also be made of T-304L stainless steel, coated carbon steel, PVC and CPVC. Please contact a Marzolf representative to determine the correct inside diameter for your application.

  • 3612-TBD
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-TBD
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-TBD
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-3/4-TBD
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-3/4-TBD
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-3/4-TBD
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-4/4-TBD
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-4/4-TBD
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-4/4-TBD
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-4/4-TBD
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-4/4-TBD
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-9/8-TBD
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-12/8-TBD
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-12/8-TBD
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-12/8-TBD
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-12/8-TBD
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-12/8-TBD
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-15/8-TBD
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-15/8-TBD
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-18/8-TBD
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

1/4 Inch (in) Thickness Carbon Steel Solid Backing Ring Flanges to Fit Polypropylene Pipe

Polypropylene · Solid Backing Ring 1/4 in · Class 150 · 9 parts

1/4 Inch (in) Thickness T-316L Stainless Steel Solid Backing Ring Flanges to Fit Polypropylene Pipe

Polypropylene · Solid Backing Ring 1/4 in · Class 150 · 9 parts

Class 150 Carbon Steel Tube Angle Ring Flanges

Steel Tube · Angle Ring · Class 150 · 20 parts

This line of carbon steel Marzolf flanges is designed to fit OD tube angle face rings.

Class 150 Stainless Steel Tube Angle Ring Flanges

Steel Tube · Angle Ring · Class 150 · 20 parts

This line of stainless steel Marzolf flanges is designed to fit OD tube angle face rings.

  • 3612-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-3/4-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-3/4-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-3/4-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-4/4-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-4/4-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-4/4-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-4/4-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-4/4-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-9/8-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-12/8-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-12/8-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-12/8-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-12/8-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-12/8-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-15/8-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-15/8-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-18/8-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Carbon Steel Tube Angle Ring Flanges

Steel Tube · Angle Ring · Class 75 · 20 parts

This line of carbon steel Marzolf flanges is designed to fit OD tube angle face rings. They are thicker than our class 75 rings. The Marzolf two-piece design allows you to simply remove the broken rings and replace them without cutting and rewelding the pipe. The interleaving component is engineered to provide uniform preload to assure a consistent and effective seal. Our carbon steel rings are available with electro-zinc plate or E-coat epoxy coating to enhance corrosion resistance.

  • 361G80-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 360G80-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 357G80-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 358G80-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 359G80-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268G80-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182G80-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172G80-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149G80-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 292G80-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 126G80-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144G80-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150G80-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152G80-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184G80-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 175G80-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 176G80-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 177G80-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 325G80-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 326G80-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Stainless Steel Tube Angle Ring Flanges

Steel Tube · Angle Ring · Class 75 · 20 parts

This line of stainless steel Marzolf flanges is designed to fit OD tube angle face rings. They are thicker than our class 75 rings. The Marzolf two-piece design allows you to simply remove the broken rings and replace them without cutting and rewelding the pipe. The interleaving component is engineered to provide uniform preload to assure a consistent and effective seal. Our stainless steel rings are made of T-316L and T-304L stainless steel or any alloy you may require.

  • 3612-IPS
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-IPS
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-IPS
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-IPS
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-IPS
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-IPS
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-IPS
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-IPS
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-IPS
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-IPS
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-IPS
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-IPS
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-IPS
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-IPS
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-IPS
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-IPS
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-IPS
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-IPS
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-IPS
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-IPS
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Carbon Steel Tube Stub End Flanges

Steel Tube · Stub End · Class 75 · 20 parts

This line of MARZOLF™ class 75 carbon steel tube stub end two piece flanges are designed to fit OD Tube Stub Ends. The Marzolf two-piece design allows you to simply remove the broken rings and replace them without cutting and rewelding the pipe. The interleaving component is engineered to provide uniform preload to assure a consistent and effective seal. Our carbon steel rings are available with an electro-zinc plate or E-coat epoxy coating to enhance corrosion resistance.

  • 361G80-STD
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 360G80-STD
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 357G80-STD
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 358G80-STD
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 359G80-STD
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 268G80-STD
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 182G80-STD
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 172G80-STD
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 149G80-STD
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 292G80-STD
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 126G80-STD
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 144G80-STD
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 150G80-STD
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 152G80-STD
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 184G80-STD
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 175G80-STD
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 176G80-STD
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 177G80-STD
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 325G80-STD
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 326G80-STD
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Class 75 Stainless Steel Tube Stub End Flanges

Steel Tube · Stub End · Class 75 · 20 parts

This line of stainless steel Marzolf flanges is designed to fit OD tube stub ends. The Marzolf two-piece design allows you to simply remove the broken rings and replace them without cutting and rewelding the pipe. The interleaving component is engineered to provide uniform preload to assure a consistent and effective seal. Our stainless steel rings are made of T-316L and T-304L stainless steel or any alloy you may require.

  • 3612-STD
    Size
    1/2 in
    O.D.
    3-1/2"
    Bolt Circle
    2-3/8"
    Holes
    4
  • 3602-STD
    Size
    3/4 in
    O.D.
    3-7/8"
    Bolt Circle
    2-3/4"
    Holes
    4
  • 3572-STD
    Size
    1 in
    O.D.
    4-1/4"
    Bolt Circle
    3-1/8"
    Holes
    4
  • 3582-STD
    Size
    1-1/4 in
    O.D.
    4-5/8"
    Bolt Circle
    3-1/2"
    Holes
    4
  • 3592-STD
    Size
    1-1/2 in
    O.D.
    5"
    Bolt Circle
    3-7/8"
    Holes
    4
  • 2682-STD
    Size
    2 in
    O.D.
    6"
    Bolt Circle
    4-3/4"
    Holes
    4
  • 1822-STD
    Size
    2-1/2 in
    O.D.
    7"
    Bolt Circle
    5-1/2"
    Holes
    4
  • 1722-STD
    Size
    3 in
    O.D.
    7-1/2"
    Bolt Circle
    6"
    Holes
    4
  • 1492-STD
    Size
    4 in
    O.D.
    9"
    Bolt Circle
    7-1/2"
    Holes
    8
  • 2922-STD
    Size
    5 in
    O.D.
    10"
    Bolt Circle
    8-1/2"
    Holes
    8
  • 1262-STD
    Size
    6 in
    O.D.
    11"
    Bolt Circle
    9-1/2"
    Holes
    8
  • 1442-STD
    Size
    8 in
    O.D.
    13-1/2"
    Bolt Circle
    11-3/4"
    Holes
    8
  • 1502-STD
    Size
    10 in
    O.D.
    16"
    Bolt Circle
    14-1/4"
    Holes
    12
  • 1522-STD
    Size
    12 in
    O.D.
    19"
    Bolt Circle
    17"
    Holes
    12
  • 1842-STD
    Size
    14 in
    O.D.
    21"
    Bolt Circle
    18-3/4"
    Holes
    12
  • 1752-STD
    Size
    16 in
    O.D.
    23-1/2"
    Bolt Circle
    21-1/4"
    Holes
    16
  • 1762-STD
    Size
    18 in
    O.D.
    25"
    Bolt Circle
    22-3/4"
    Holes
    16
  • 1772-STD
    Size
    20 in
    O.D.
    27-1/2"
    Bolt Circle
    25"
    Holes
    20
  • 3252-STD
    Size
    24 in
    O.D.
    32"
    Bolt Circle
    29-1/2"
    Holes
    20
  • 3262-STD
    Size
    30 in
    O.D.
    38-3/4"
    Bolt Circle
    36"
    Holes
    28

Carbon Steel FM Approved DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 150 · 11 parts

Coated for corrosion protection

Stainless Steel FM Approved DIPS Flange Adapters

HDPE · DIPS Stub End / Adapter · Class 150 · 11 parts

T-316L and T-304L Stainless Steel are standard.

Carbon Steel Fm Approved IPS Flange Adapters & HDPE Stub End Flange

HDPE · IPS Stub End / Adapter · Class 150 · 11 parts

Coated for corrosion protection

Stainless Steel Fm Approved IPS Flange Adapters & HDPE Stub End Flange

HDPE · IPS Stub End / Adapter · Class 150 · 11 parts

T-316L and T-304L Stainless Steel are standard.

Don't see your size?

We make split flanges to order. Your picks carry over, so you only add what is missing.

Call Now(715) 426-5705
